LPSRV2-16

PDF Download

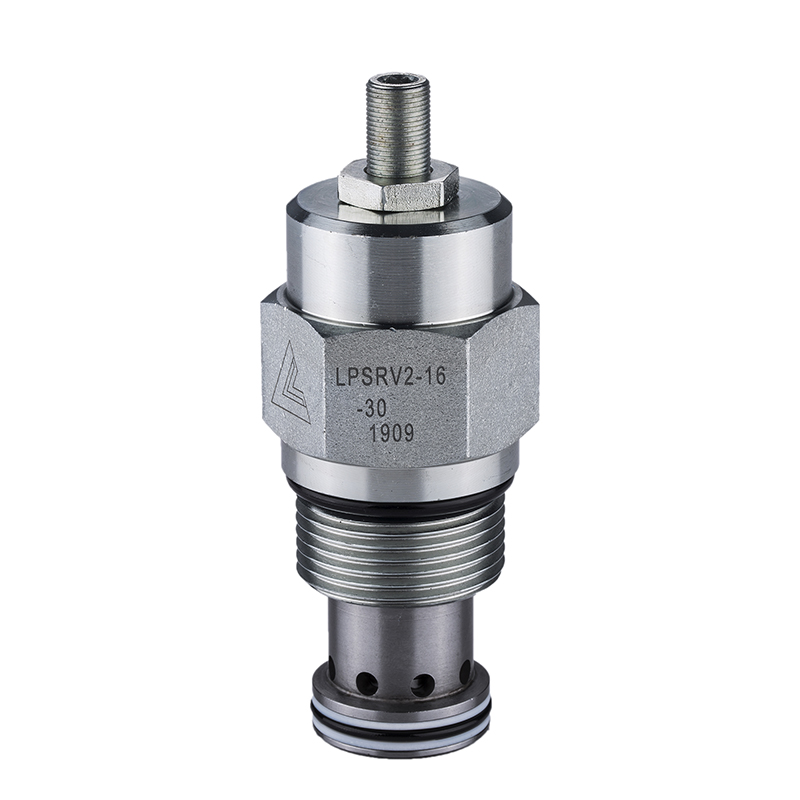

Description

A cartridge-style pilot-operated spool-type relief valve

SYMBOL

Up all

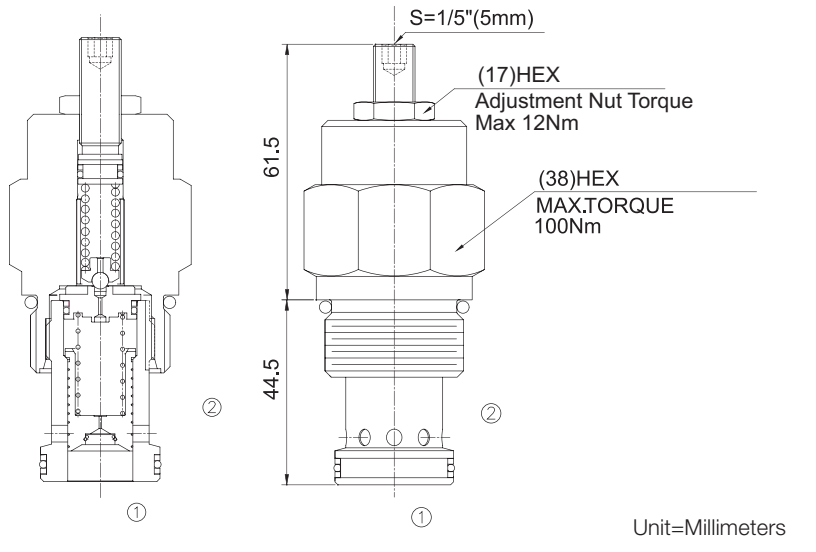

Technical Feature

OPERATION:
The valve prevents flow from ① to ② until pressure at ① exceeds the set Cracking
Pressure and opens the pilot section. The pilot flow creates a pressure differential
across the spool which causes the valve to open allowing flow from ① to ② protecting
the circuit from over pressurization.
PerformanceCurves
Technical Data

Operating Pressure
420Bar

Flow

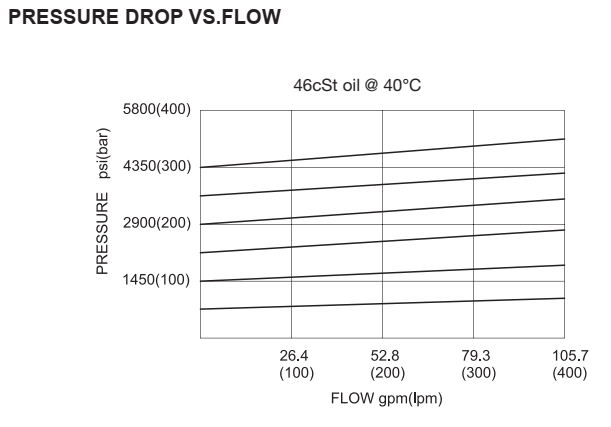

See PRESSURE DROP VS.FLOW graph.

Cavity

16-2

Filtration

Refer to "Cleanliness of Hydraulic Fluid"

Internal Leakage
82 cc/min max. to 80% of nominal setting

Reseat Pressure
85% of cracking pressure(cracking pressure at 0.95 lpm /0.25 gpm)

Standard Spring Ranges
10-210bar Preset:100bar; 10-420bar :200bar;

Temperature
-40°F to +250°F(-40°C to +120°C)

Fluids
Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Body Material
Steel & Ductile iron rated to 350bar

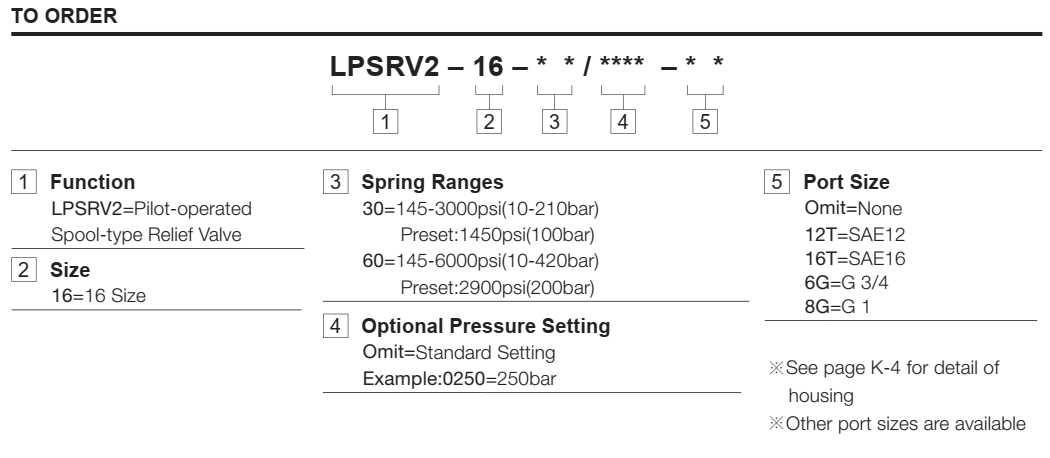

File Download

PDF File

LPSRV2-16
ACCESSORIES
