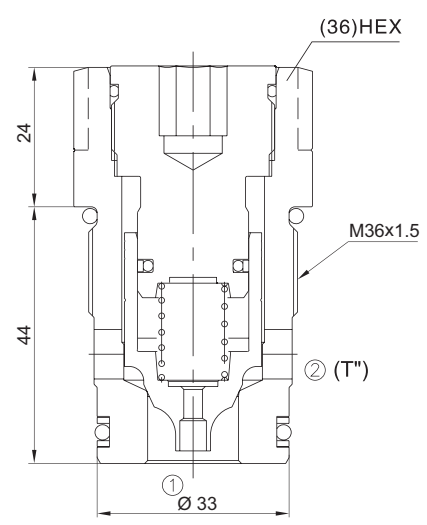

A cartridge-style anti-cavitation valve

Technical Feature

OPERATION:
Oil lost through leakage or operation of pressure relief valves is replaced by anticavitation valves. Their opening pressure is normally above 0.8bar, therefore the inlet
pressure must be higher than the atmospheric pressure.
Technical Data

Operating Pressure
420bar

Flow

300l/min.

Cavity

Rexroth-LM

Filtration

Refer to "Cleanliness of Hydraulic Fluid"

Internal Leakage
2 drops/min. max. at 350bar

Temperature
-40°F to +250°F(-40°C to +120°C)

Fluids
Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Body Material
Steel & Ductile iron rated to 350bar
File Download

PDF File

MHSV24K1-M36
