Technical Feature
OPERATION:
The valve is normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. When the ressure at the inlet (port ① ) reaches the valve setting, the valve starts to open to tank (port ② ), throttling flow to limit the pressure rise. These valves are smooth and quiet, essentially zero leak, dirt tolerant, immune to silting and are very fast.
-

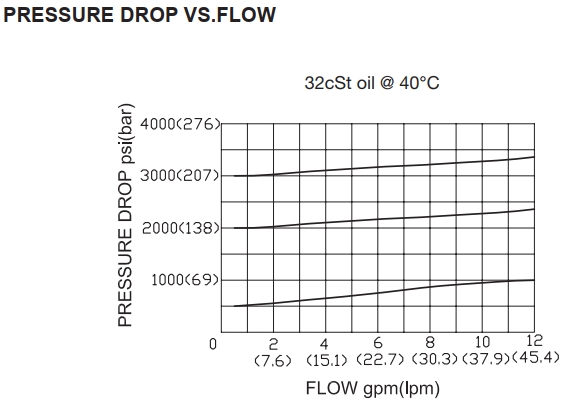

PerformanceCurves
-
Technical Data
350BarSee PRESSURE DROP VS.FLOW graph.SUN T-162ARefer to "Cleanliness of Hydraulic Fluid"10 drops/min>80% of setting pressure

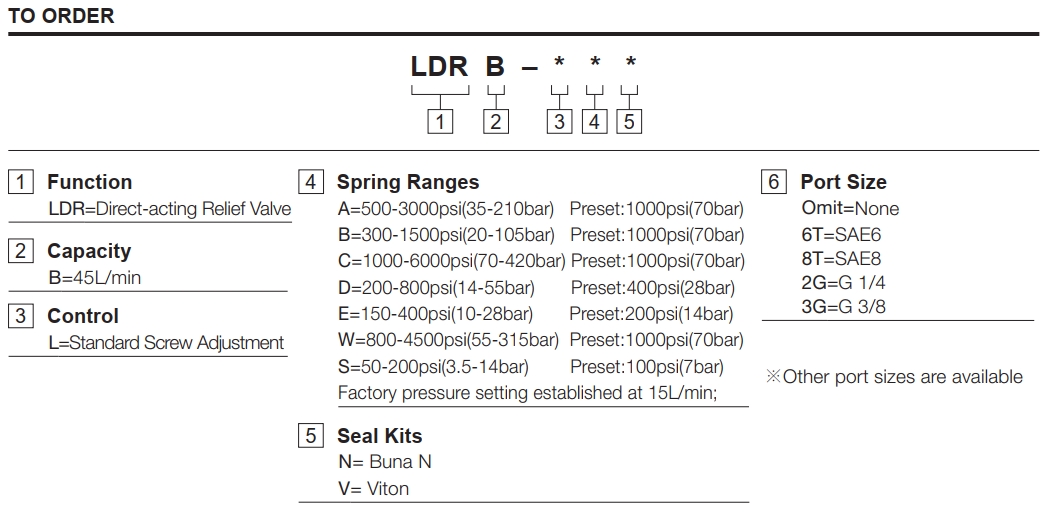

A 35-210 bar; Preset:70bar
B 20-105 bar; Preset:70bar
C 70-420 bar; Preset:70bar
D 14- 55 bar; Preset:28bar
E 10- 28 bar; Preset:14bar
W 55-315 bar; Preset:70bar
S 3.5- 14 bar; Preset: 7bar-40°F to +250°F(-40°C to +120°C)Mineral-based fluids with viscosities of 7.4 to 420 cSt.Steel & Ductile iron rated to 350bar -
File Download
PDF File -
