Technical Feature
OPERATION:
The valve prevents flow from ① to ② until pressure at ① exceeds the set Cracking
Pressure and opens the pilot section. The pilot flow creates a pressure differential
across the spool which causes the valve to open allowing flow from ① to ② protecting
the circuit from over pressurization. -

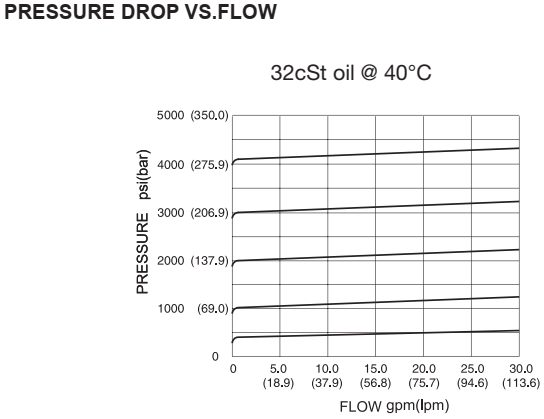

PerformanceCurves
-

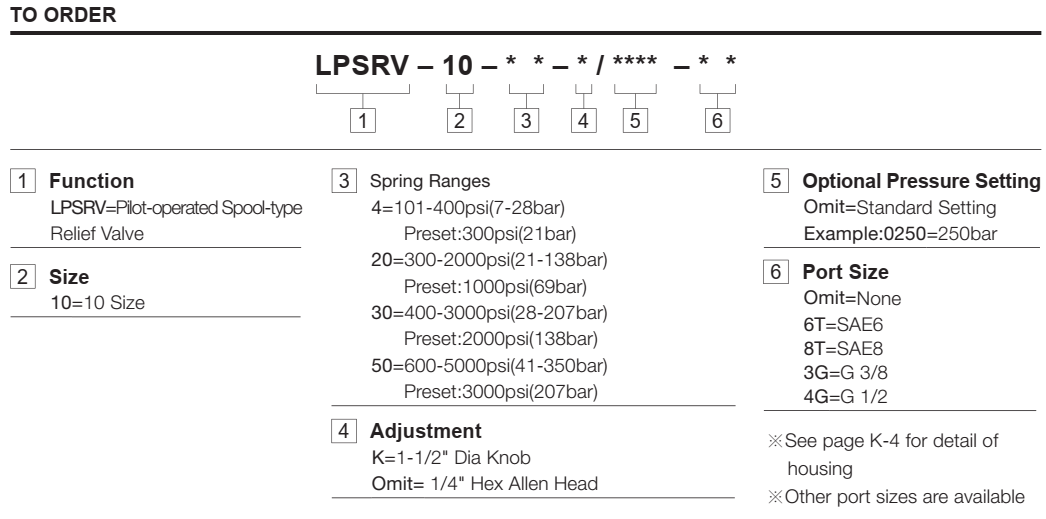

Technical Data
Operating Pressure350barFlowSee PRESSURE DROP VS. FLOW graph.Cavity10-2FiltrationRefer to "Cleanliness of Hydraulic Fluid"Internal Leakage82 cc/min max. to 80% of nominal settingReseat Pressure85% of cracking pressure (cracking pressure at 0.95 lpm /0.25 gpm)Standard Spring Ranges7 to 28 bar; preset: 21 bar
21 to 138 bar; preset: 69 bar
28 to 207 bar; preset:138 bar
41 to 350 bar; preset:207 barTemperature-40°F to +250°F(-40°C to +120°C)FluidsMineral-based fluids with viscosities of 7.4 to 420 cSt.Body MaterialSteel & Ductile iron rated to 350bar -
